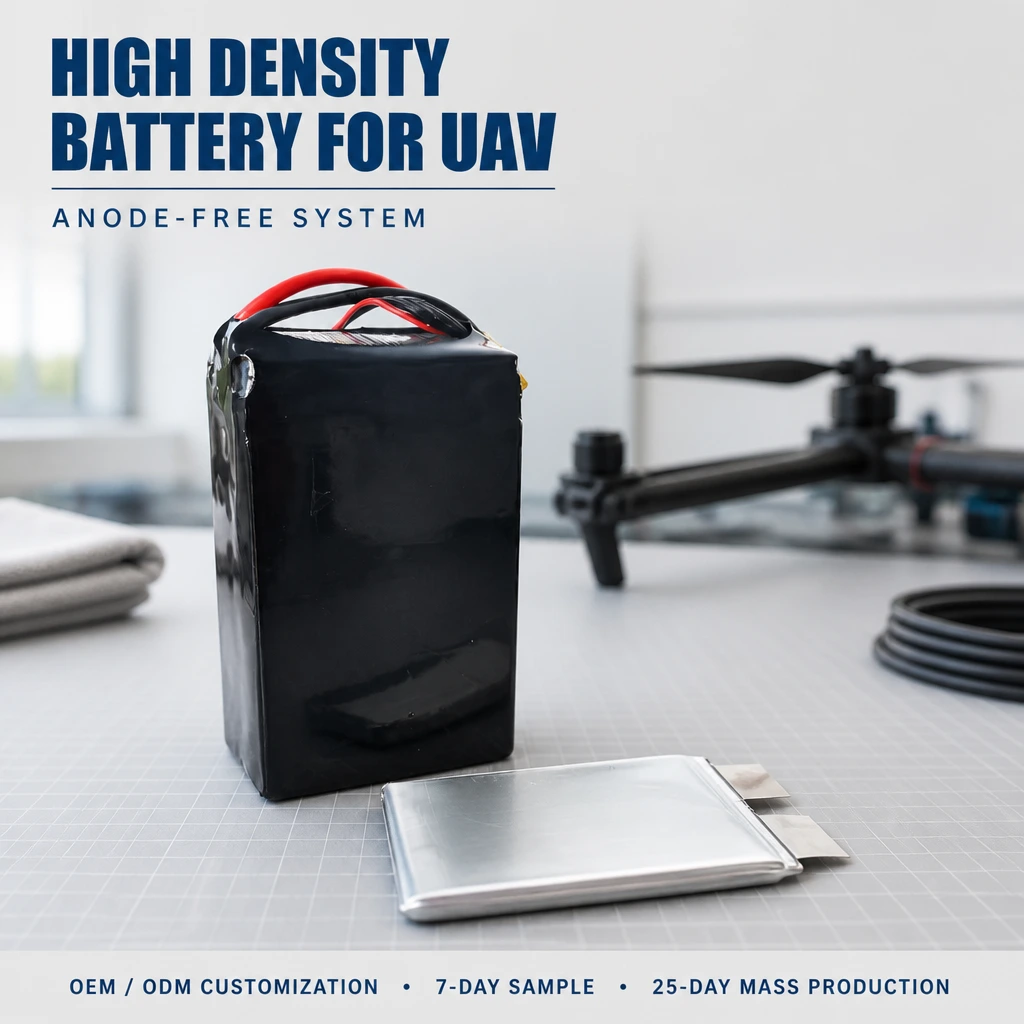

40Ah 3.85V Anode Free Battery for UAV Drone | High Energy Density Battery
● 600 Wh/kg Energy Density
● 3.85V Nominal Voltage.
● 3C Discharge.
High energy density anode-free cell delivering up to 600 Wh/kg. 3.85V nominal voltage, maximum 3C discharge rate. Designed for UAVs and applications requiring extended operational endurance.
Custom specifications available.
About Anode free Cells
High-Performance Power | Self-developed | Superior Performance
The semi-solid battery represents an emerging battery architecture.
Compared to conventional lithium-ion batteries, semi-solid batteries deliver higher energy density and superior thermal stability. They are widely adopted in industrial drone battery systems, robotics, and other advanced applications.
Comparison of Joysun semi-solid vs. liquid Li-ion cells:
| Joysun Anode free battery | Semi-Solid State | tradition UAV Li-ion | |
| Energy Density | Up to 600+Wh/kg | ~350–400 Wh/kg | 180~260Wh/kg |
| Weigh | ~40–50% lighter | ~20–30% lighter | Baseline |
| Cycle Life | 10~20cycles | 800–1500 cycles | 500–1000 cycles |
| Low-Temp Performance | Better（-40~60℃） | Better（-40~60℃） | Fair |
| safety | Excellent (Near non-flammable) | Excellent (Near non-flammable) | Moderate (thermal runaway risk) |
One-stop energy solutions
Joysun offers diverse range of product lines and customization services.
You can select the option below that best matches your application scenario to view our existing products,
or submit your requirements to receive tailored energy solution from our professional team.
FPV Battery
FPV is a special type of drone, primarily characterized by its unique first-person-view flight experience. Based on usage, FPV drones are categorized into several types, including Drone Racing, Freestyle, CineFPV, and FPV aerial photography.
Joysun offers a diverse range of battery options for all types of FPV drones, with discharge rates 3C ~ 200C. Both LiHV and standard LiPo chemistries are available.
