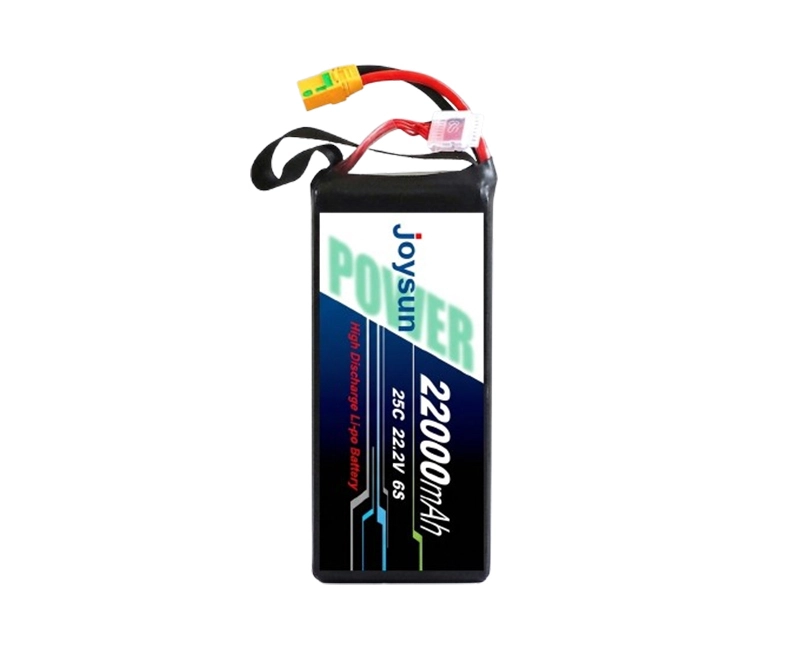

Battery For Mapping Drone
● Supports 3C Fast Charging
● 350+ Charge–Discharge Cycle Life
● Up to 3C Discharge Performance at -40°C
● Comprehensive Battery Certification Portfolio
● Energy Density Up to 200Wh/kg
● -40℃～55℃Operating Temperature Range: -40°C to 55°C
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
This Battery For Mapping Drone is a professional power solution tailored for long-duration aerial mapping and surveying missions, delivering stable performance to support precise data collection. This battery for mapping drone supports 3C fast charging and boasts 350+ charge-discharge cycles, with up to 3C discharge capability even at -40°C and an energy density of up to 200Wh/kg. Backed by a comprehensive certification portfolio, it operates reliably across a wide temperature range from -40°C to 55°C, ensuring consistent, durable power for industrial mapping, surveying and environmental monitoring applications.
Product Specifications
| Capacity （mAh） | Voltage （V） | Discharge （C） | Combination | L*W*H (±5mm) | Weight (±100g) | Energy Density （Wh/kg） |
| 13000 | 44.4 | 25C | 12S1P | 140*90*212 | 4000 | 144.3 |
| 14000 | 44.4 | 25C | 12S1P | 150*80*220 | 4200 | 148 |
| 16000 | 44.4 | 25C | 12S1P | 150*90*212 | 4600 | 154.43 |
| 20000 | 44.4 | 25C | 12S1P | 150*100*240 | 6300 | 140.95 |
| 22000 | 44.4 | 25C | 12S1P | 160*100*240 | 7500 | 130.24 |
| 24000 | 44.4 | 25C | 12S1P | 170*100*240 | 8500 | 125.36 |
Product Specifications
| Capacity（mAh） | Voltage（V） | C-Rate（C） | Configuration | Dimension(±5mm) | Weight(±100g) | Energy Density（Wh/kg） |
| 12000 | 22.2 | 25C | 6S1P | 192*70*52 | 1492 | 178.55 |
| 14000 | 22.2 | 25C | 6S1P | 237*71*54 | 1902 | 163.41 |
| 16000 | 22.2 | 25C | 6S1P | 185*77*66 | 1872 | 189.74 |
| 22000 | 22.2 | 25C | 6S1P | 206*91*60 | 2479 | 197.01 |
| 30000 | 22.2 | 25C | 6S1P | 209*130*65 | 3673 | 181.32 |
