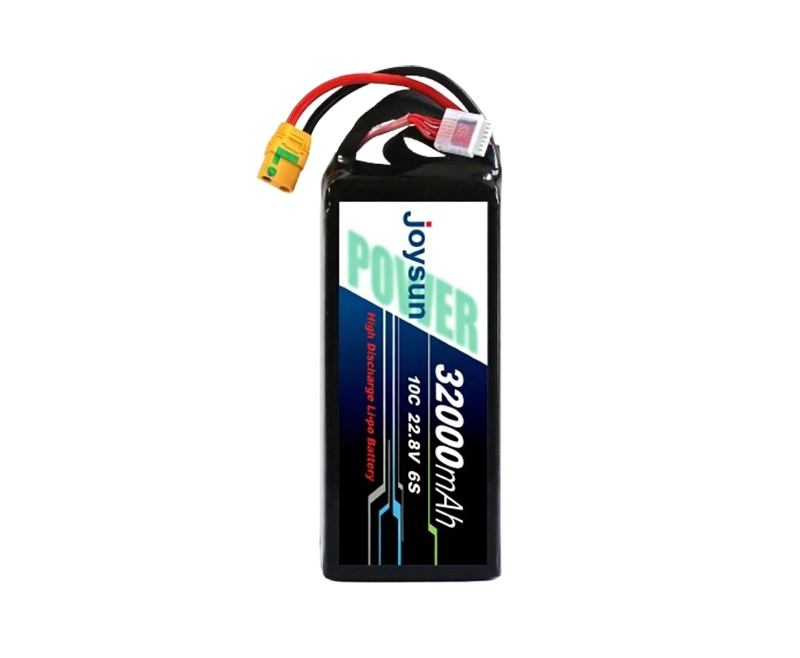

High-Voltage Lithium-Polymer Battery for Surveillance Drones
High Discharge Lithium-Polymer Battery for Surveillance Drones
● Energy Density Up to 210 Wh/kg
● Supports 1C Charging Rate
NMC 811 Semi-Solid-State Lithium-Ion Battery for Surveillance Drones
● Energy Density Up to 320 Wh/kg
● Supports 1C Charging
● Safe Discharge Down to 3.0V per Cell
High-Voltage Lithium-Polymer Battery for Surveillance Drones
● High Energy Density Up to 240 Wh/kg
● High Voltage: 4.35V per Cell
● Supports 1C Charging Rate
● Safe Discharge Down to 3.6V per Cell
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
This High-Voltage Lithium-Polymer Battery For Surveillance Drones is a professional power solution tailored for long-endurance monitoring missions, offering multiple high-performance variants to meet diverse surveillance needs. This high-voltage lithium-polymer battery for surveillance drones includes options with up to 320 Wh/kg energy density (NMC 811 semi-solid-state), 240 Wh/kg (high-voltage LiPo), and 210 Wh/kg (high-discharge LiPo), all supporting 1C charging for efficient turnaround. Featuring safe discharge down to 3.0V–3.6V per cell and high voltage platforms up to 4.35V per cell, it delivers stable, long-lasting power for extended aerial surveillance, border patrol, and critical infrastructure monitoring operations.
Product Specifications
High Discharge Lithium-Polymer Battery for Surveillance Drones
| Capacity (mAh) | Configuration | Discharge Rate (C) | Voltage (V) | Weight(g) | Dimension (mm) |
| 8000 | 6S | 25 | 22.2 | 1140g±30g | 48*66*172mm |
| 10000 | 6S | 25 | 22.2 | 1360±30g | 58*66*177mm |
| 22000 | 6S | 25 | 22.2 | 2530g±30g | 64*91*207mm |
| 30000 | 6S | 25 | 22.2 | 3494g±30g | 61*125*216mm |
NMC 811 Semi-Solid-State Lithium-Ion Battery for Surveillance Drones
| Capacity (mAh) | Configuration | Discharge Rate (C) | Voltage (V) | Weight(g) | Dimension (mm) |
| 30000mAh | 14s | 5c | 22.2 | 5860g | 155.5*91.5*213mm |
| 27000mAh | 6s | 5c | 22.2 | 2340g | 62.5*93*209.5mm |
High-Voltage Lithium-Polymer Battery for Surveillance Drones
| Capacity (mAh) | Configuration | Discharge Rate (C) | Voltage (V) | Weight(g) | Dimension (mm) |
| 10000 | 6S1P | 15 | 22.8 | 1360±30g | 58*66*177mm |
| 12000 | 6S1P | 15 | 22.8 | 1460g±30g | 54*76*202mm |
| 25000 | 6S1P | 10 | 22.8 | 2538g±100g | 65*92.5*208mm |
| 28000 | 6S1P | 10 | 22.8 | 2924±30g | 68*97*221mm |
| 32000 | 6S1P | 10 | 22.8 | 3494g±30g | 61*125*216mm |
| 40000 | 6S1P | 10 | 22.8 | 4292g±30g | 63.5*123.5*260.5mm |
| 22000 | 6S1P | 25 | 22.8 | 2328g±100g | 61.5*92.5*208mm |
