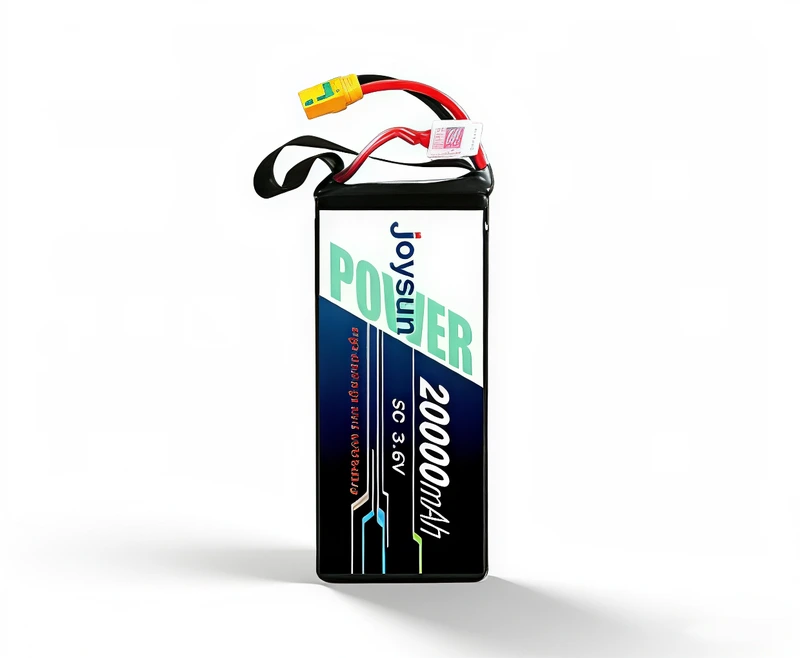

Semi-solid Drone Battery 1
Semi-solid Drone Battery 2
Semi-solid Drone Battery 3
Semi-solid Drone Battery 4
Semi-solid Drone Battery 5
Semi-solid Drone Battery 6
Semi-solid Drone Battery 7
Semi-solid Drone Battery 8
Semi-solid Drone Battery 9
Semi-solid Drone Battery 1
Semi-solid Drone Battery 2
Semi-solid Drone Battery 3
Semi-solid Drone Battery 4
Semi-solid Drone Battery 5
Semi-solid Drone Battery 6
Semi-solid Drone Battery 7
Semi-solid Drone Battery 8
Semi-solid Drone Battery 9

Semi-solid Drone Battery

This series is purpose-built for industrial UAVs(Medium and Large Drones), delivering the high capacity and reliability required for demanding missions. Boasting an impressive high energy density of up to 400 Wh/kg, this semi-solid drone battery delivers exceptional power efficiency while maintaining high-safety performance. It supports a wide temperature range from -30°C to 55°C, ensuring stable operation in both polar and extreme hot environments. Equipped with 3C discharge rate, it meets the diverse energy demands of professional drone operations. Furthermore, its durability is proven by maintaining 80% remaining capacity after 800 cycles, significantly reducing long-term replacement costs and providing reliable, cost-effective power solutions for industrial drone users.
5.0
design customization

    oops...!

    no product data.

    Go to homepage

    40/52/66Ah batteries

    Suitable for Extended Flight Time

    -30°C to 55°C high-efficiency discharge, suitable for polar and extremely hot environments
    After 800 cycles, remaining capacity is 80%, resulting in cost savings
    Achieving up to 400 Wh/kg high energy density
    3C-10C discharge rate

    High-safety performance
    B-67000_副本
    小渔夫定制插头模块

    Flexible, Multi-Dimensional Customization

    We offer extensive customization options to meet diverse application needs, including but not limited to:
    ● Connectors & Plugs:​ Compatible with various international standards ( XT90/AS150/XT150/AS150U/XT60)
    Cell Specifications:​ Flexible selection of capacity and discharge rate.
    Battery Pack Configuration:​ Tailored voltage, capacity, and BMS settings based on your device requirements.
    ● Branding & Housing:​ Custom labels, silk-screen printing, and bespoke casing designs.

    Battery Pack (Customizable)

    Model Capacity Voltage Dimension mm Discharge Rate Cell Configuration
    JSN10490190 40000mAh 21.6V 63.5*90*203 2C/3C 6S1P
    JSN11102210 52000mAh 21.6V 71*102*228 1C/3C 6S1P
    JSN11145190 67000mAh 21.6V 70*145*208 1C/3C 6S1P

    Cell Specifications

    Model Capacity Voltage Dimension mm Discharge Rate Energy Density
    JSN6260140 7500mAh 3.6V 6.2*60*140 10C
    JSN1043142 10000mAh 3.6V 10.2*43*142 7C
    JSN8170117 13000mAh 3.6V 8.1*70*117 5C
    JSN6470178 14000mAh 3.6V 7.0*70*178 5C
    JSN5090195 16000mAh 3.6V 5.0*90*195 5C
    JSN6894145 16000mAh 3.6V 6.8*94*145 5C
    JSN8294145 20000mAh 3.6V 8.3*94*145 5C
    JSN8570178 20000mAh 3.6V 8.5*70*178 5C
    JSN68108168 22000mAh 3.6V 6.5*108*168 3C
    JSN9794145 24000mAh 3.6V 9.8*94*145 5C
    JSN9370180 24000mAh 3.6V 9.3*70*185 5C
    JSN9975174 25000mAh 3.6V 9.7*75*174 5C
    JSN9590195 30000mAh 3.6V 9.5*90*195 5C
    JSN11090195 37000mAh 3.6V 11.1*90*195 5C
    JSN1390195 40000mAh 3.6V 13*90*195 3C
    JSN10145190 44000mAh 3.6V 10.2*145*190 7C
    JSN78171255 67000mAh 3.6V 8.1*171*255 3C
