Product details of the drone battery
Product Information
The design of Joysun Energy drone battery is grounded in thorough research of the existing and target customers. lithium ion battery for drone drone battery provides high reliability and superior performance at a low cost. lithium ion battery for drone Joysun New Energy Co., Ltd. has set up oversea warehouse to achieve sufficient and timely supply of drone battery. lithium ion battery for drone
About Semi Solid State Cells
High-Performance Power | Self-developed | Superior Performance
The semi-solid battery represents an emerging battery architecture. Compared to conventional lithium-ion batteries, semi-solid batteries deliver higher energy density and superior thermal stability. They are widely adopted in industrial drone battery systems, robotics, and other advanced applications.Comparison of Joysun semi-solid vs. liquid Li-ion cells:
| Joysun semi soild state | tradition liquid state | |
| Energy Density | 400+Wh/kg | 180~260Wh/kg |
| Safety | Excellent (Non-flammable) | Standard (Thermal risk) |
| Cycle Life | 800+Cycles | Standard |
| Low-Temp Performance | Better（-40~60℃） | Fair |
| Rate Capability | Good (High-rate ready) | Excellent (Ultra-high C-rate) |
Standard Cell Specifications
Capacity （mAh） | Standard Voltage （V） | Discharge （C） | Max. Series Connection | L*W*H (±5mm) | Energy Density （Wh/kg） |

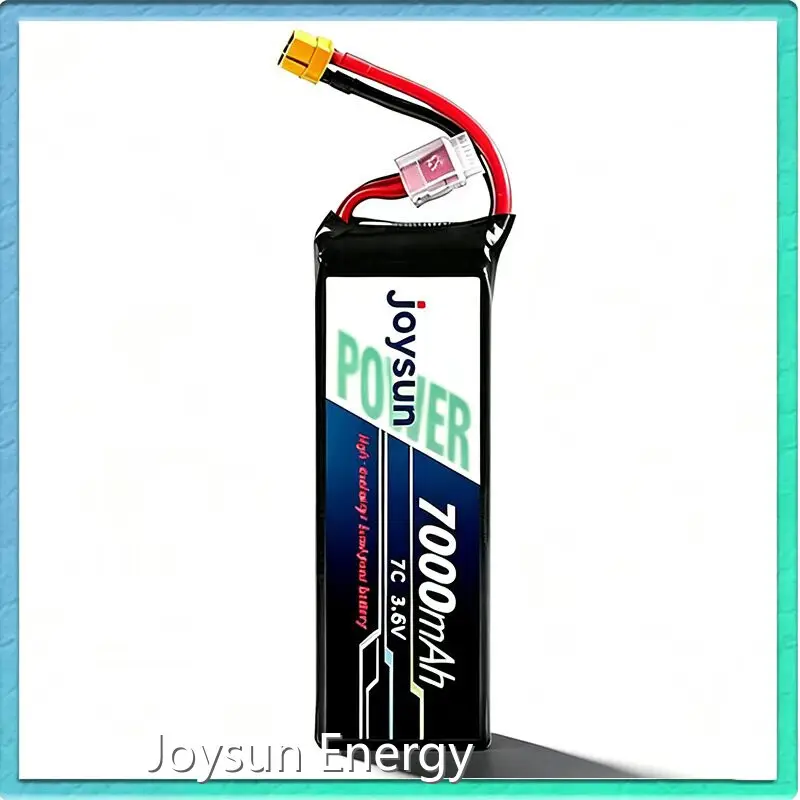

7000 | 3.6 | 7 | 14S | 4.3*65*145 | 310 |
20000 | 3.6 | 5 | 14S | 7.9*94*144 | 325 |
40000 | 3.6 | 3 | 14S | 11.1*90*190 | 327 |
Company Feature
• Joysun Energy enjoys superior geographical location. And we provide good external conditions for our company's development, such as convenient transportation and abundant resources.
• Our products are mainly sold to Europe, Africa, America, Southeast Asia and other countries and regions.
• Joysun Energy adopts advanced production and management technology to carry out organic production. We also maintain close partnerships with other well-known domestic companies. We are committed to providing customers with quality products and professional services.
Welcome all customers to come for cooperation.
