Global leading one stop lithium battery solution manufacturer - Joysun Energy

Joysun Household Energy Storage 25.6V100Ah 1

Joysun Household Energy Storage 25.6V100Ah 2

Joysun Household Energy Storage 25.6V100Ah 3

Joysun Household Energy Storage 25.6V100Ah 4

Joysun Household Energy Storage 25.6V100Ah 5

Joysun Household Energy Storage 25.6V100Ah 6

Joysun Household Energy Storage 25.6V100Ah 7

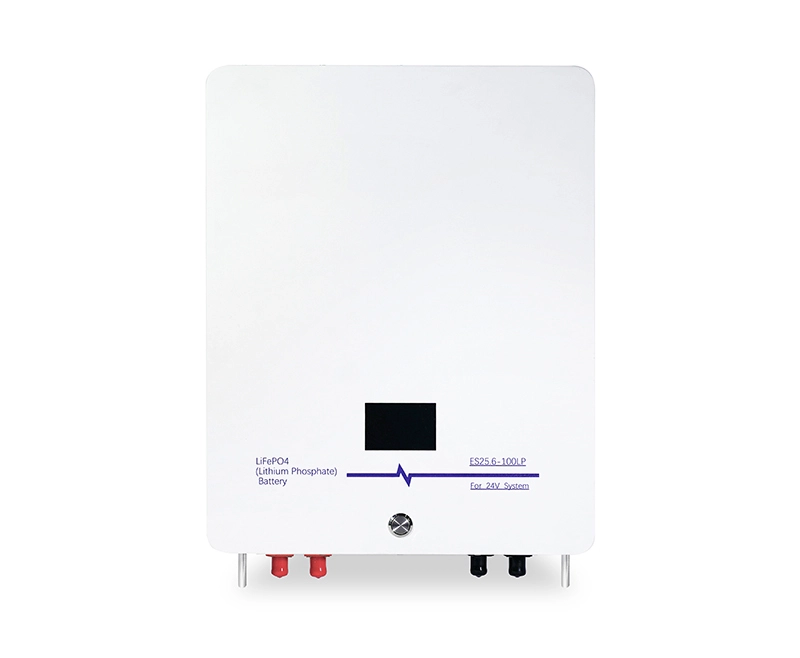

Joysun Household Energy Storage 25.6V100Ah

The Joysun Household Energy Storage 25.6V100Ah is a reliable and efficient energy storage solution for households looking to store excess energy generated from solar panels or wind turbines. With a large capacity of 100Ah, it can power essential household appliances during power outages or peak energy demand times, providing peace of mind and reducing electricity costs.

Size:

L495mm*W350mm*H215.5mm

Place of Origin:

China

Minimum order quantity:

300 SET

Color:

White

Material Science:

Metal

Packing:

Fibreboard Boxes

Delivery time:

25DAYS

Model:

25.6V100Ah

Inquiry

download

LU25.6-105 JOYSUN Battery Specification A0

Write a Review

Detail description

Choose us, and we promise to do everything needed to ensure a successful and satisfactory working partnership.

Handle design

Integrated side handles for easy moving and setup.

Operation panel

RS485/CAN Communication - for connecting more batteries in parallel.

Installation method

Optional wall-mounted or floor-standing installation, easy to install.

Display screen

Multiple display options are available, including keypads or LCD screens, and various sizes are selectable.

Product Specifications

Description	Parameters	Max. Continuous Charging Current (A)	100
Model	25.6V100Ah	Max. Continuous Discharging Current (A)	100
Array Mode	8S1P	Cycle Life	>6000Times@80% DOD, 25°C
Nominal Energy (Kwh)	2.5	Communication Mode	RS485/CAN
Nominal Voltage (V)	25.6	Operating Temp	Charging: 0~60°C; Discharging: -10°C~65°C
Charge Voltage (V)	29.2	Size(LxWxH) mm	495X215.5X350
Discharge Cut-off Voltage (V)	20	Net Weight (Kg)	~27
Standard Charging Current(A)	20	Package Size (LXWXH) mm	570X445X240
Gross Weight (Kg)	~31

LU25.6-105 JOYSUN Battery Specification A0

NO.	Items	Criteria	Remarks
2.1	Initial Typical Capacity	105Ah	25±2℃, 0.2C charge, 0.2C discharge
	Initial Minimum Capacity	103Ah
2.2	Nominal Voltage	25.6V	Cell 3.20V
2.3	Open Circuit Voltage	25.2~26.8V	Cell 3.15~3.35V (Battery pack 45%＜SOC＜55%)
2.4	Cell Impedance Resistance	≤0.6 mΩ	Internal resistance measured at AC 1KHZ after 50% charge
	PACK Resistance PACK	40 mΩ
2.5	Charge Cut-off Voltage	29.2V
2.6	Standard Charge Current	50A
2.7	Max. Charge Current	105A	1C
2.8	Standard Discharge Current	50A
2.9	Max. Discharge Current	105A	1C
2.10	Discharge Cut-off Voltage	20V	Cell 2.50V
2.11	Operating Temperature	0℃~+55℃	Charging
		-10℃~+60℃	Discharging
2.12	Storage Temperature	10℃~35℃
2.13	Weight	Approx 28Kg
2.14	Waterproofing grade	IP21	GB4208-2017
2.15	Battery Module series-parallel connection	8S1P
2.16	Cycle Life of cell before PACK	4000 cycles, 80% SOH, 25℃, 0.5C/0.5C.		PHYLION
