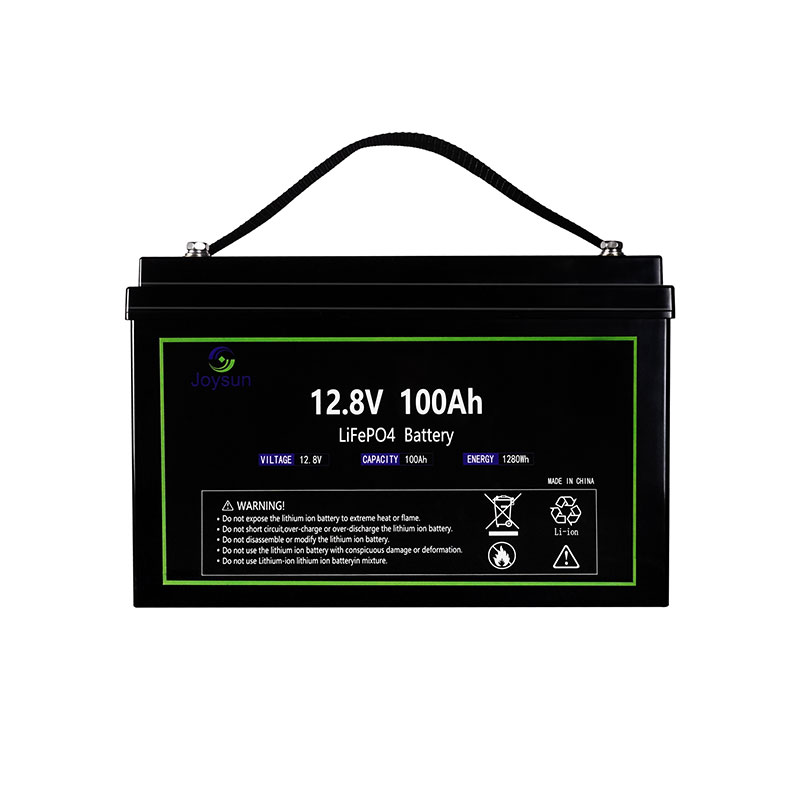

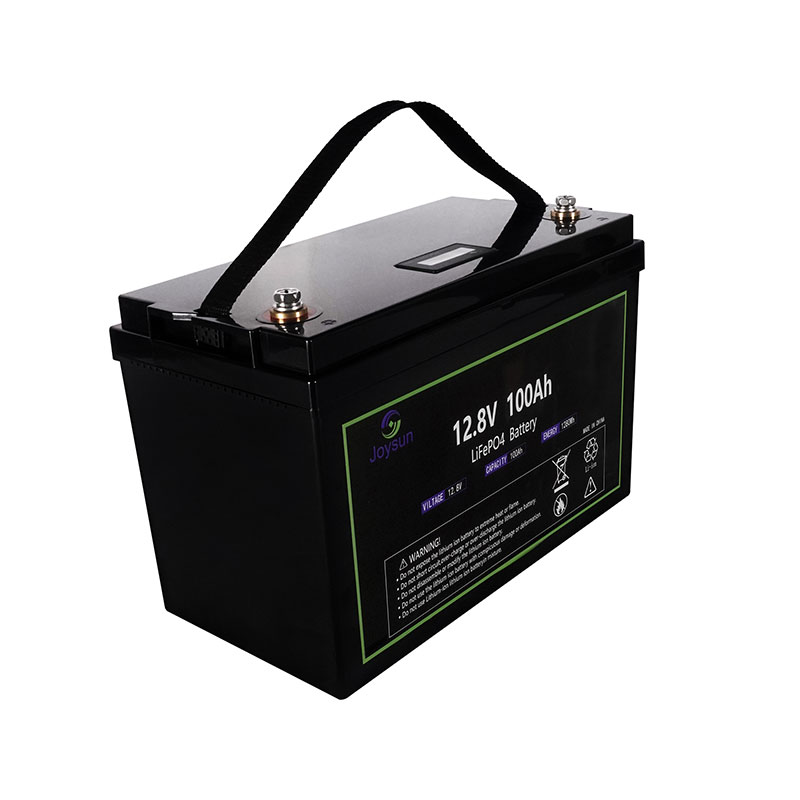

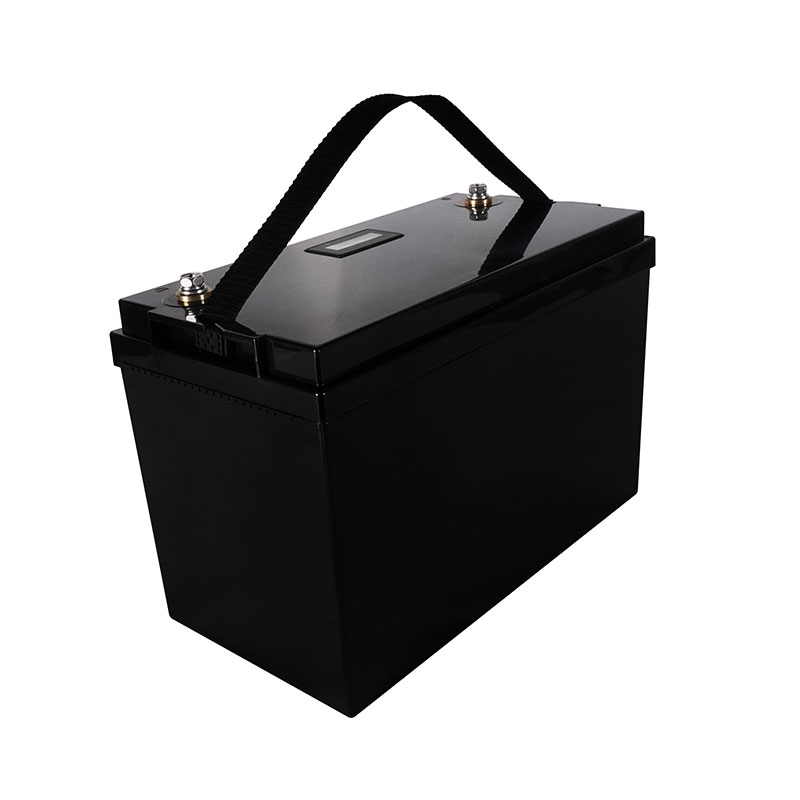

LFP 12.8V 100Ah 1280Wh LiFePO4 Battery Built-in BMS was designed as a deep-cycle discharge battery pack to offer a solution to demanding applications that require a lighter weight, longer life, and higher capacity battery, which is adopted with advanced battery management systems (BMS) and bluetooth intelligent monitoring.Capable for 4P4S connection to expand the capacity and voltage. Widely applied in UPS, Golf Car, RV, solar/wind power system, Remote Monitoring and so on.
LFP 12.8V 100Ah 1280Wh LiFePO4 Battery Built-in BMS was designed as a deep-cycle discharge battery pack to offer a solution to demanding applications that require a lighter weight, longer life, and higher capacity battery, which is adopted with advanced battery management systems (BMS) and bluetooth intelligent monitoring.Capable for 4P4S connection to expand the capacity and voltage. Widely applied in UPS, Golf Car, RV, solar/wind power system, Remote Monitoring and so on.
https://i.trade-cloud.com.cn/upload/6786/20240227164856739506.pdf
|
Items |
Criteria |
|
Typical Capacity |
100Ah |
|
Minimum Capacity |
100Ah |
|
Nominal Voltage |
12.8V |
|
Open Circuit Voltage |
13~13.3V |
|
Cell Internal Impedance |
≤2 mΩ |
|
PACK Internal Impedance |
30 mΩ |
|
Charge Cut-off Voltage |
14.6V |
|
Standard Charge Current |
50A |
|
Max. Charge Current |
50A |
|
Standard Discharge Current |
100A |
|
Max. Discharge Current |
100A |
|
Discharge Cut-off Voltage |
8.8V |
|
Operating Temperature |
0℃~+55℃ |
|
-30℃~+55℃ |
|
|
Storage Temperature |
10℃~35℃ |
|
Weight |
12kg |
|
Waterproofing grade |
IP67 |
|
Series-parallel connection of batter packs |
4P4S |
|
Cycle Life |
2000 Cycles |
|
Intelligent monitoring |
Bluetooth |
1) Lithium iron phosphate battery pack is characterised by outstanding durability, current performance and charging speed.
2) Lighter weight: About 40% ~50% lighter than a same capacity lead acid battery.
3) Long service life and high durability: LiFePO4 batteries pack retain over 80% of the capacity even after 2000 charging cycles, which could provide us with over 10 years of use.
4) Built-in BMS: LiFePO4 batteries pack are equipped with BMS which monitors not only the charge and discharge of the battery but also the temperature thus ensuring the safety of operation and maximising the battery cycle life.
5) 12.8V 100Ah LFP Battery Pack was designed to be alternative to Lead-Acid or AGM Deep-Cycle batteries.
Lithium Iron Phosphate(LiFePO4 ) Battery pack can be used in most applications that use Lead Acid, GEL or AGM type batteries.
◆ UPS
◆ Remote Monitoring
◆ Solar & Wind Power System
◆ Golf Cart
◆ E-bike, two-wheeler, three wheeler etc.
◆ Lighting
