LFP 48V 200Ah 9600Wh LiFePO4 Battery Built-in BMS was designed as a deep-cycle battery energy storage system for the backup purpose of telecommunication industry. with long service life, light weight, standard size, and excellent environmental adaptability, 48V 200Ah LiFePO₄ battery pack are applied in wide variety of applications, such as telecom base station, UPS, renewable energy system, etc.,
LFP 48V 200Ah 9600Wh LiFePO4 Battery Built-in BMS was designed as a deep-cycle battery energy storage system for the backup purpose of telecommunication industry. with long service life, light weight, standard size, and excellent environmental adaptability, 48V 200Ah LiFePO₄ battery pack are applied in wide variety of applications, such as telecom base station, UPS, renewable energy system, etc.,
LFP 48V 200Ah 9600Wh LiFePO4 Battery Built-in BMS Parameter (Specification)
|
Items |
Parameters |
|
|
Rated capacity |
Nominal capacity |
200Ah |
|
Min capacity |
According to capacity ratio in different discharge current |
|
|
Nominal Voltage |
48.0V |
|
|
Discharge cut-off voltage |
37.5V |
|
|
Charge voltage |
54.0V |
|
|
Impedance |
10mΩ~60mΩ |
|
|
Consistency |
dropout voltage of Charging end of cell(when charging cut-off ) ≤300mV |
|
|
Dropout voltage of discharging end of cell(when overall voltage is 37.5V ) ≤300mV |
||
|
Standard charging |
Continuous current：20A Continuous voltage：54.0V Cut-off current：4A |
|
|
Standard discharge |
Continuous current：200A Cut-off voltage：37.5V |
|
|
Max continuous charge current |
200A |
|
|
Max continuous discharge current |
200A |
|
|
Working temperature range |
Charge: 0~55℃ |
|
|
Discharge: -10~55℃ |
||
|
Storage temperature range |
-40~70℃ |
|
|
Dimension |
442mm×355.5mm×500mm |
|
|
weight |
102±5KG |
|
LFP 48V 200Ah 9600Wh LiFePO4 Battery Built-in BMS Feature
1) 48V 200Ah Lithium iron phosphate battery pack is characterised by outstanding
durability, current performance, High energy density,and fast charging;
2) Long service life and high durability: LiFePO4 batteries pack retain over 80% of the capacity even after 3000 charging cycles, which could provide us with over 10 years of use;
3) Light weight, saving space;
4) No memory effect,No gassing, Maintenance free;
5) Built-in BMS: LiFePO4 batteries pack are equipped with BMS which monitors not only the charge and discharge of the battery but also the temperature thus ensuring the safety of operation and maximising the battery cycle life;
6) Support communication protocol RS232, RS485,CAN;
7) Modular design for 19 inch standard telecom cabinet, support parallel connection to increase capacity.
LFP 48V 200Ah 9600Wh LiFePO4 Battery Built-in BMS Application
48V 200Ah Lithium Iron Phosphate(LiFePO4 ) Battery pack can be used in most applications for back-up energy system.
◆ Energy storage system
◆ Solar application
◆ Telecom application
◆ Emergency lighting
◆ Medical equipment
◆ Data center
◆ Server
◆ Banking system

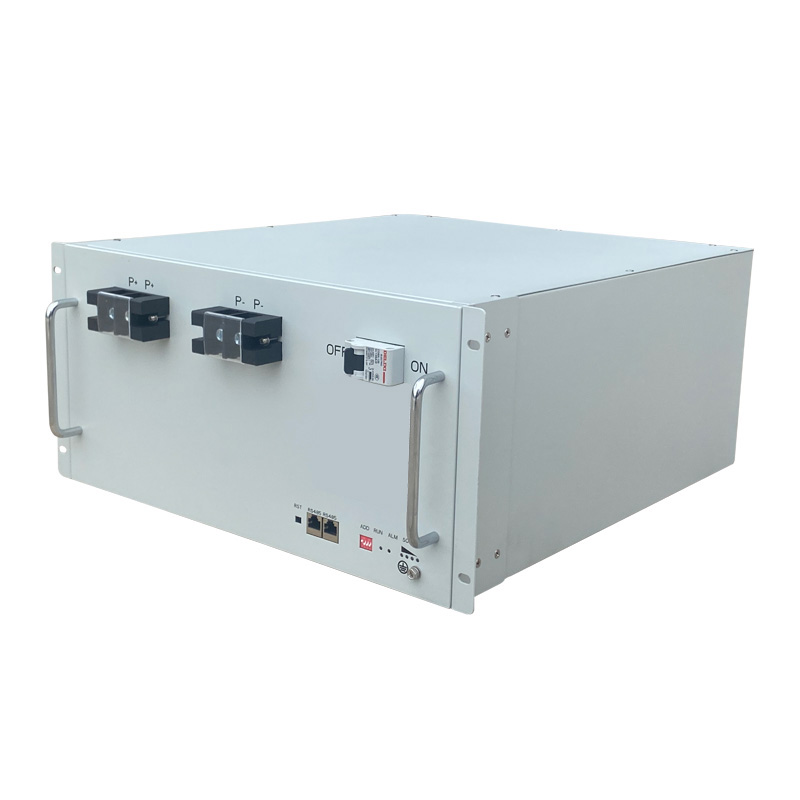

LFP 48V 200Ah 9600Wh LiFePO4 Battery Built-in BMS Details
