Wall- Mounted Household ESS

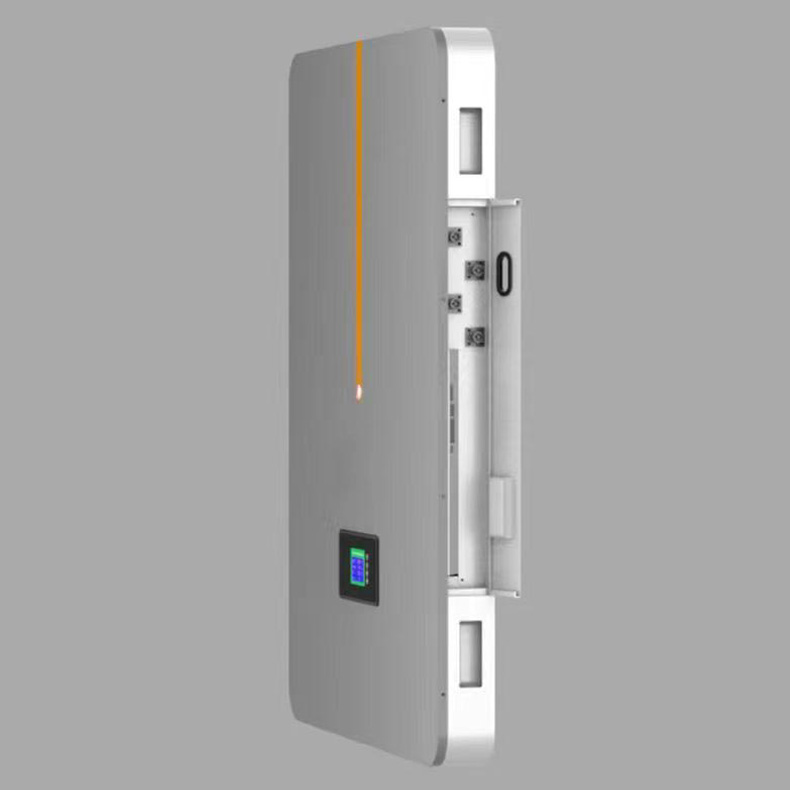

Joysun Wall- mounted household ESS was an integrated solar energy storage system that stores your solar energy for backup protection, which is adopted most advanced LiFePo4 battery and smart energy management software to efficiently manage home energy usage throughout the day. It is an intelligent home energy storage solution that is safe, long-lasting and offers options for 48V/51.2V 100Ah/200Ah of battery capacity to store excess solar power for use at night and provide reliable emergency backup power during grid outages. When the grid goes down your power stays on. Your system detects outages and automatically recharges with sunlight to keep your appliances running for days.

Send Inquiry

Product Description

Product Parameter (Specification)

Item

51.2V 184Ah

51.2V 100Ah

Rated Capacity

184.0Ah

100Ah

Minimal Rated

Capacity

180.0Ah

100Ah

Nominal Voltage

51.2V

51.2V

Cycle Life

Higher than 80% of the Initial Capacity of the Cells after 2000 cycles

Higher than 80% of the Initial Capacity of the Cells after 2000 cycles

Discharge cut-off voltage

40V

40V

Charging cut-off voltage

58.4V

58.4V

Maximum Charge Current

100A

100A

Max Continuous

Discharge Current

100A

100A

Operation Temperature Range

Charge: 0~45℃

Charge: 0~45℃

Discharge: -10~60℃(cell surface temperature≤80℃)

Discharge: -10~60℃(cell surface temperature≤80℃)

Weight

Approx: 100Kg

49Kg

Max. Dimension

H:W:L=1000*80*770mm

420*580*160mm

Communication

RS485/CAN

RS485/CAN

Display

LED+LCD

LED+LCD


Wall- Mounted Household ESS Feature

1) With minimalist design, easy to install and maintain;

2) Expand the storage capacity up to 16 pcs most;

3) Friendly home style and perfect for home solar energy storage system;

4) Realize to work with 90% world well-known inverter brands, such as Growatt, Goodwe, Sol-Ark, SRNE etc..

5) High-Quality, Attractive Price;

6) Safe, long-lasting.


Product Application

1) Self- spontaneous use;

2) Power consumption and backup(emergency power backup mode);

3) Generation power and grid as complementary for energy storage system;

4) Peak load shifting(peak-shaving mode)


Product Details
